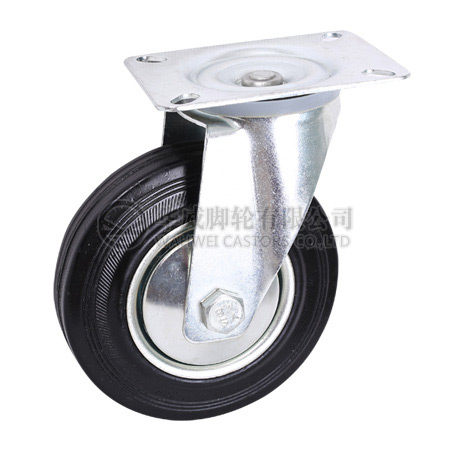

>> Swivel black rubber steel rim castors|
|
 Wheel Size(mm)) |
 Capacity(kg) |
 Spacing Hole(mm) |
 Hole Size(mm) |
 Plate Size(mm) |
 Swivel Padius(mm) |
 Overall Height(mm) |
|
101TP075R02
|
75x23
|
50
|
13x9
|
57x42
|
75x60
|
23
|
93
|
|
101TP080R02 |
80x25
|
60
|
14x9
|
80x60
|
105x80
|
33
|
106
|
|
101TP100R02
|
100x30
|
70
|
14x9
|
80x60
|
105x80
|
33
|
128
|
|
101TP125R02 |
125x37 |
100 |
14x9 |
80x60 |
105x80 |
33 |
156 |
|
101TP140R02 |
140x35 |
115 |
14x9 |
80x60 |
105x80 |
33 |
175 |
|
101TP150R02 |
150x35 |
125 |
14x9 |
80x60 |
105x80 |
33 |
180 |
|
101TP160R02 |
160x40 |
140 |
17x12 |
104x80 |
135x110 |
54 |
196 |
|
101TP180R02 |
180x45 |
170 |
17x12 |
104x80 |
135x110 |
55 |
216 |
|
101TP200R02 |
200x50 |
205 |
17x12 |
104x80 |
135x110 |
55 |
236 |
|
101TP250R02 |
250x50 |
230 |
17x12 |
104x80 |
135x110 |
60 |
289 |
