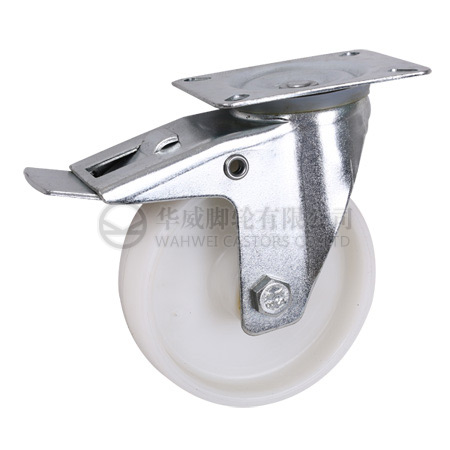

Product Name:Swivel PP/Nylon castors with brake

Product Description:

Art.NO.	Wheel Size(mm))	Capacity(kg)	Spacing Hole(mm)	Hole Size(mm)	Plate Size(mm)	Swivel Padius(mm)	Overall Height(mm)
401TP080R03 501TP080R03	80x30	60	14x9	80x60	105x80	33	106
401TP100R03 501TP100R03	100x32	70	14x9	80x60	105x80	33	128
401TP125R03 501TP125R03	125x38	100	14x9	80x60	105x80	33	156
401TP150R03 501TP150R03	150x40	125	14x9	80x60	105x80	33	180
401TP200R03 501TP200R03	200x48	205	17x12	104x80	135x110	55	236

*Roller Bearing and Plain bearing are available.
